Thông số kỹ thuật
Main
| Range |
EasyLogic |
| Product name |

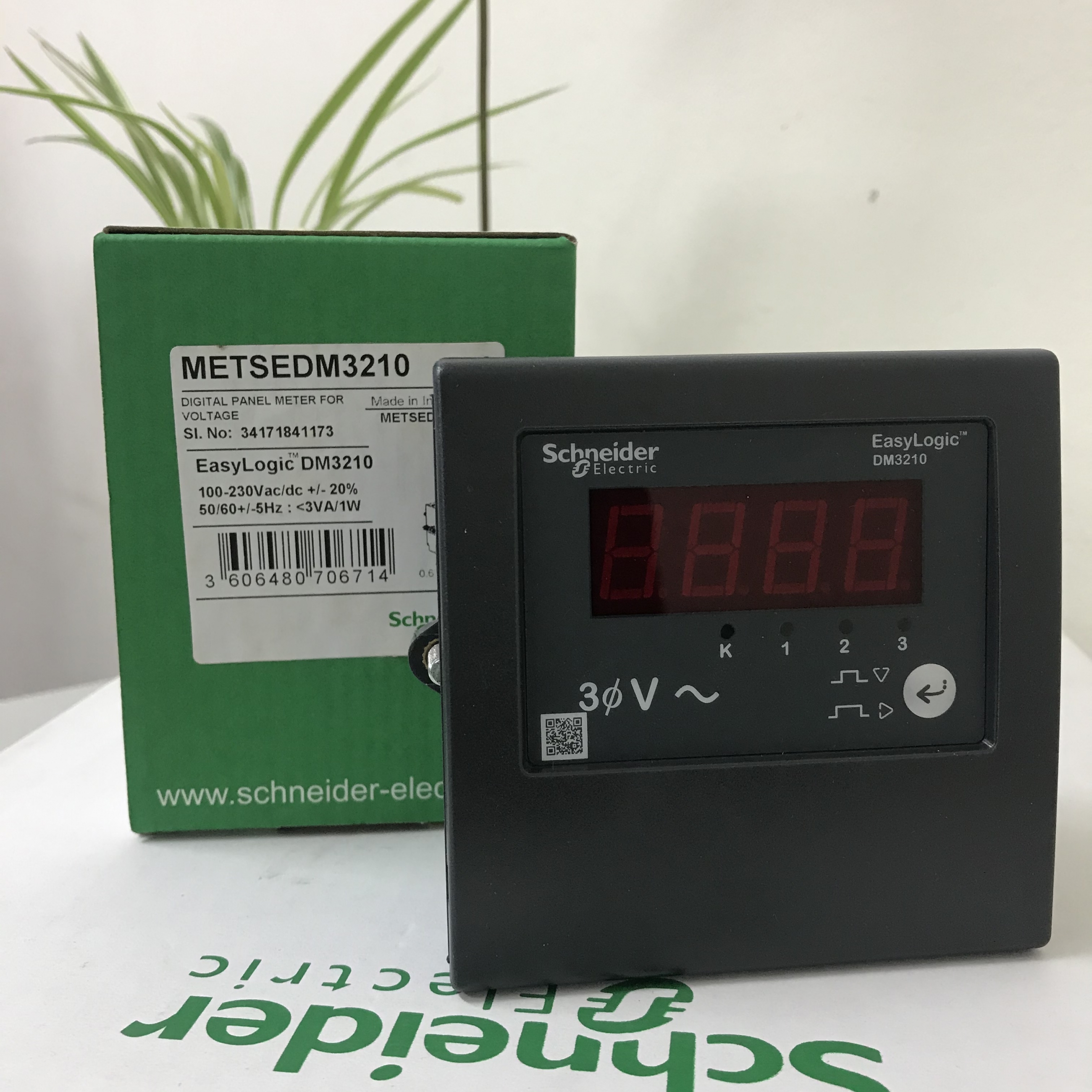

EasyLogic DM3000 |
| Device short name |
DM3210 |
| Product or component type |
Voltmeter |
| Device application |
GenSet
Test laboratories
Load control |
Complementary
| Poles description |
3P
3P + N |
| Type of measurement |
Voltage |
| [Us] rated supply voltage |
100...230 V AC +/- 20 %
100...230 V DC +/- 20 % |
| supply frequency |
50/60 Hz +/- 5 Hz |
| Network frequency |
50 Hz
60 Hz |
| maximum power consumption in VA |
3 VA at 230 V AC |
| Display type |
LED |
| Display digits |
4 |
| Full scale display |
999.9 |
| control type |
Selector switch built-in |
| analogue input type |
Voltagethree phase |
| measurement voltage |
25…277 V AC phase to neutral, 50/60 Hz +/- 5 Hz
44…480 V AC phase to phase, 50/60 Hz +/- 5 Hz |
| Accuracy |
Voltage +/- 0.5 % of full scale for class 0.5 |
| Device mounting |
Flush |
| Mounting support |
Panel |
| Type of installation |
Indoor |
| Measurement category |
Category III |
| Standards |
IEC 61326 |
| product certifications |
CE conforming to IEC 61010-1 |
Environment
| electromagnetic compatibility |
Conducted and radiated emissions class A conforming to CISPR 11
Electrostatic discharge conforming to IEC 61000-4-2
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Surge immunity test conforming to IEC 61000-4-5
Conducted RF disturbances conforming to IEC 61000-4-6
Magnetic field at power frequency conforming to IEC 61000-4-8
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Harmonics conforming to IEC 61000-3-2
Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3 |
| IP degree of protection |
Front panel: IP50
Body: IP30 |
| Relative humidity |
5…95 % |
| Pollution degree |
2 |
| Ambient air temperature for operation |
-10…60 °C |
| Ambient air temperature for storage |
-25…70 °C |
| Colour |
Black |
| Width |
96 mm |
| Height |
96 mm |
| Depth |
38 mm |
| Cut-out dimensions |
92 x 92 mm |
| Net weight |
170 g |
- Tên sản phẩm: Đồng hồ DM3000
- Thông số cơ bản: Đồng hồ 3 phases ; type of measurement. Voltage ; [Us] rated supply voltage. 100…230 V AC +/- 20 %
