Specifications
Main
| Range of product |
PowerLogic PM700 |
| Device short name |
PM700 |
| Product or component type |
Power meter |
Complementary
| Power quality analysis |
Total harmonic distortion |
| type of measurement |
Current
Voltage
Frequency
Power factor total
Apparent power total
Active power total
Reactive power total
Apparent power per phase
Active power per phase
Reactive power per phase
Energy |
| supply voltage |
125...250 V DC
115...415 V AC 45...65 Hz |
| Network frequency |
45...65 Hz |
| maximum power consumption in VA |
5 VA |
| Display type |
Backlit LCD |
| Display resolution |
6 lines |
| Sampling rate |
32 samples/cycle |
| Measurement current |
1 A
5 A |
| input type |
Current 0.005...6 A (impedance <= 0.1 Ohm) |
| measurement voltage |
10…480 V AC 45...65 Hz phase to phase
10…277 V AC 45...65 Hz phase to neutral |
| measurement accuracy |
Power 1 %
Current 0.5 % 1...6 A
Voltage 0.5 % 50...227 V
Frequency 0.02 Hz 45...65 Hz
Power factor 0.0034 1A to 6A and from -0.5 to +0.5 |
| accuracy class |
Class 2 reactive energy conforming to IEC 62053-23
Class 1 active energy conforming to IEC 62053-21 |
| number of outputs |
2 pulse |
| Data recording |
Min/max of instantaneous values |
Environment
| electromagnetic compatibility |
Limits for harmonic current emissions: , conforming to IEC 61000-3-2
Conducted and radiated emissions: , conforming to EN 55011 class B
Electrostatic discharge immunity test: , class III, conforming to IEC 61000-4-2
Susceptibility to electromagnetic fields: , class III, conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test: , class III, conforming to IEC 61000-4-4
1.2/50 µs shock waves immunity test: , class III, conforming to IEC 61000-4-5
Conducted RF disturbances: , class III, conforming to IEC 61000-4-6
Immunity to impulse waves: , class III, conforming to IEC 61000-4-8
Immunity to microbreaks and voltage drops: , class III, conforming to IEC 61000-4-11
Limitation of voltage changes, voltage fluctuations and flicker in low-voltage: , conforming to IEC 61000-3-3 |
| Mounting mode |
Flush-mounted |
| mounting support |
Panel |
| Type of installation |
Indoor installation |
| Overvoltage category |
III |
| IP degree of protection |
IP30 back: conforming to IEC 60529
IP52 front face: conforming to IEC 60529 |
| relative humidity |
95 % at 50 °C |
| pollution degree |
2 |
| ambient air temperature for operation |
-5…60 °C: meter
-10…55 °C: display |
| Ambient air temperature for storage |
-40…85 °C |
| Operating altitude |
0...3000 m |
| Standards |
UL 508
IEC 61010-1
CSA C22.2 No 14 |
| Product certifications |
CULus
CE |
| Width |
96 mm |
| depth |
69 mm |
| Height |
96 mm |
| Net weight |
0.37 kg |

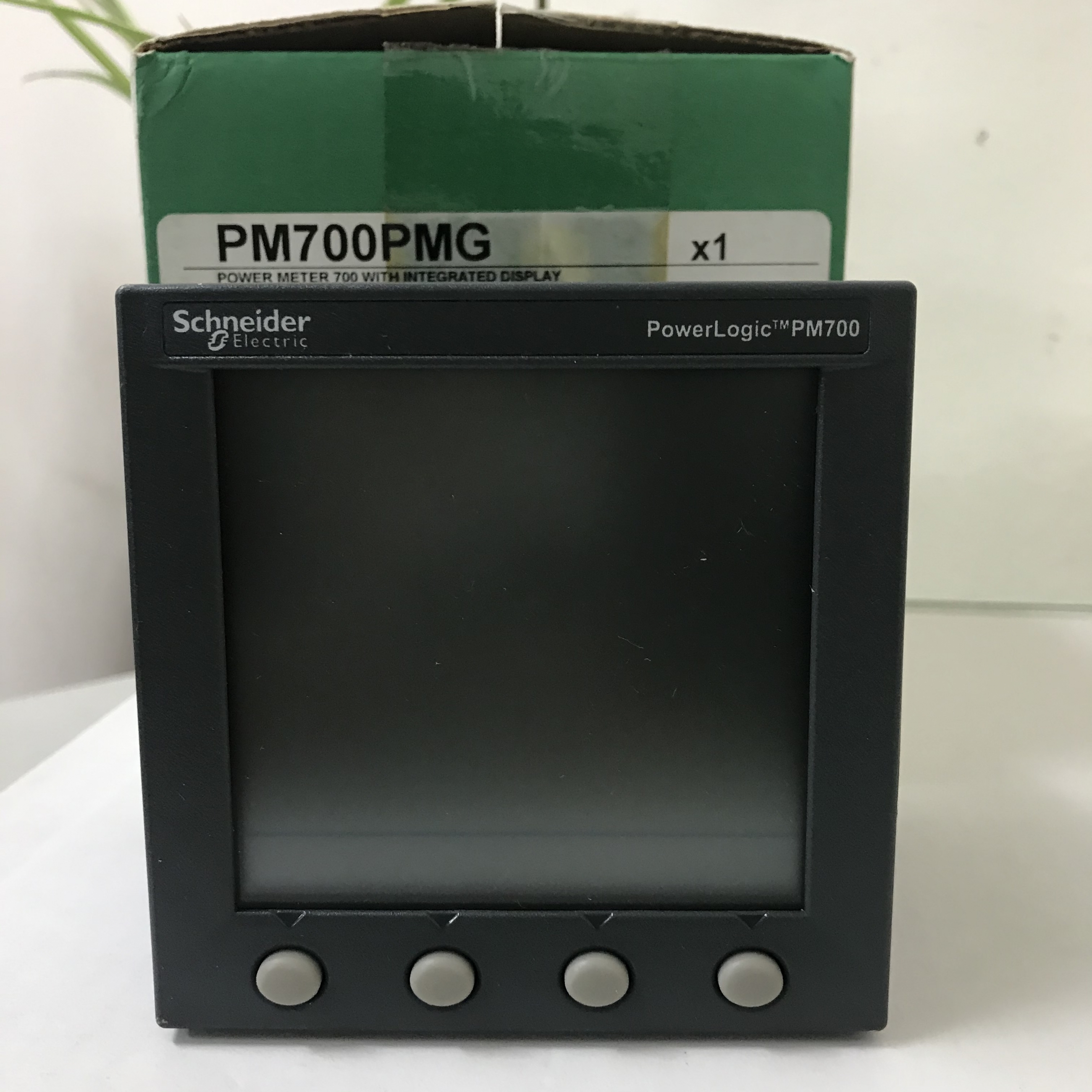

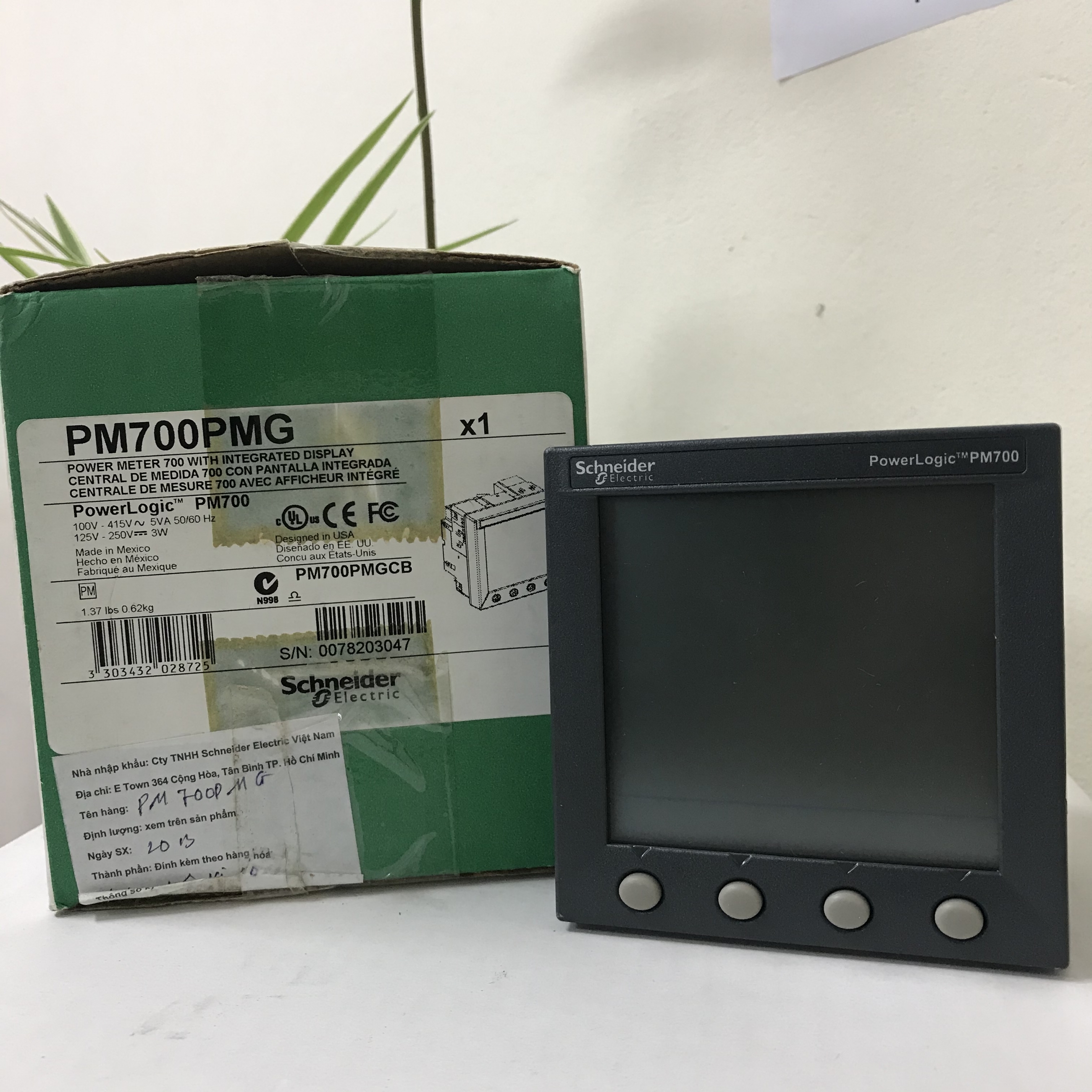

- Tên sản phẩm: Đồng hồ PM700
- Thông số cơ bản: Power meters, 2 digital outputs, Accuracy 0.5%, Communication, True RMS values on 3 phase: I, U, f, P, Q, S, PF, kWh, kVAh, , Varh, time, Harmonic distortion (THD) of I U, Accuracy 0,5% for U, I. Meets IEC 62053, Backlit LCD display with 4 lines
